The Veil3 is a lightweight but durable carbon rim. The 32mm deep Delta Rim profile makes for snappy accelerations and easy climbing while also improving airflow and stability. This full-carbon tubeless, ready clincher has an internal rim width of 20mm, making it well-suited for a variety or tire-widths.

All Astral rims are Tubeless Easy for pain-free tire installation you can do at home.

Add a nipple kit for an easier build. Choose the Veil3 as a complete wheel build.

Custom builds available! Any hub, any spec, just contact us with your special project. We’ll make it happen. Services available to dealers.

*20 hole rim not available in disc brake

  • 700c Carbon Clincher
  • Weight: Rim brake - 410g
  • Weight: Disc brake - 400g

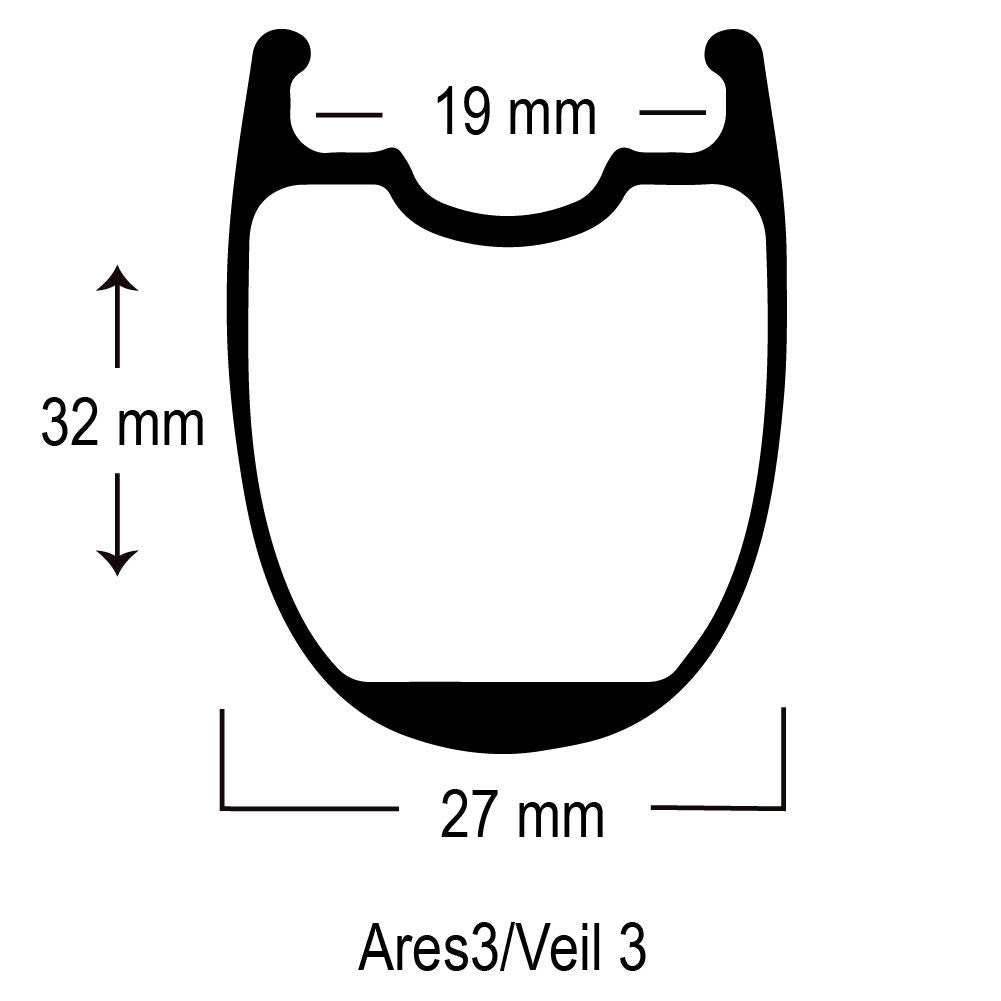

  • Depth: 32mm
  • Width: Int: 19mm / Ext: 27mm
  • External nipples
  • ERD: 576.5mm
  • Spoke Bed Diameter: 574mm
  • Max Tension: 130kgf
  • Hole count options: Disc brake: 24 or 28; Rim brake: 20, 24 or 28

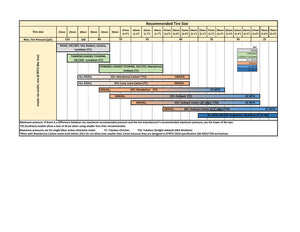

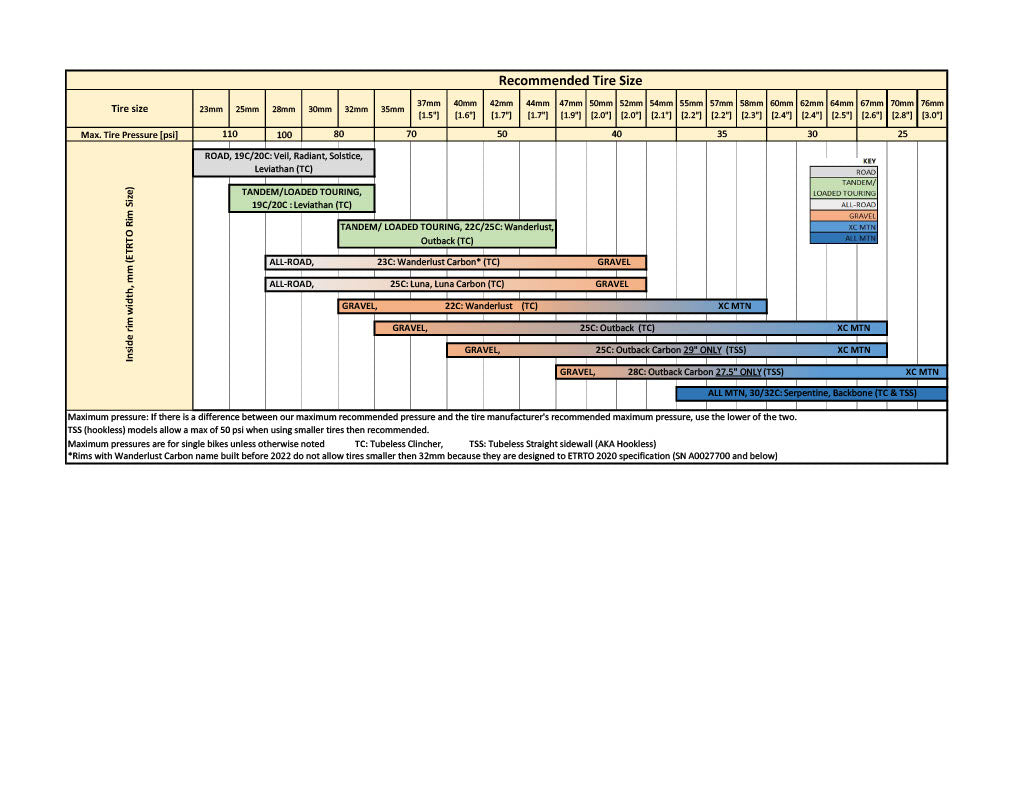

  • Max tire pressure for tire widths: 25mm: 120psi, 32mm: 80psi
  • Hole count options: Disc brake: 24; Rim brake: 20 or 24
  • Max tire pressure for tire widths: 25mm: 120psi, 32mm: 80psi, 40mm: 60psi, 50mm: 45psi



The Veil3 is a lightweight but durable carbon rim. The 32mm deep Delta Rim profile makes for snappy accelerations and easy climbing while also improving airflow and stability. This full-carbon tubeless, ready clincher has an internal rim width of 20mm, making it well-suited for a variety or tire-widths.

All Astral rims are Tubeless Easy for pain-free tire installation you can do at home.

Add a nipple kit for an easier build. Choose the Veil3 as a complete wheel build.

Custom builds available! Any hub, any spec, just contact us with your special project. We’ll make it happen. Services available to dealers.

*20 hole rim not available in disc brake

  • 700c Carbon Clincher
  • Weight: Rim brake - 410g
  • Weight: Disc brake - 400g
  • Depth: 32mm
  • Width: Int: 19mm / Ext: 27mm
  • External nipples
  • ERD: 576.5mm
  • Spoke Bed Diameter: 574mm
  • Max Tension: 130kgf
  • Hole count options: Disc brake: 24 or 28; Rim brake: 20, 24 or 28
  • Max tire pressure for tire widths: 25mm: 120psi, 32mm: 80psi
  • Hole count options: Disc brake: 24; Rim brake: 20 or 24
  • Max tire pressure for tire widths: 25mm: 120psi, 32mm: 80psi, 40mm: 60psi, 50mm: 45psi

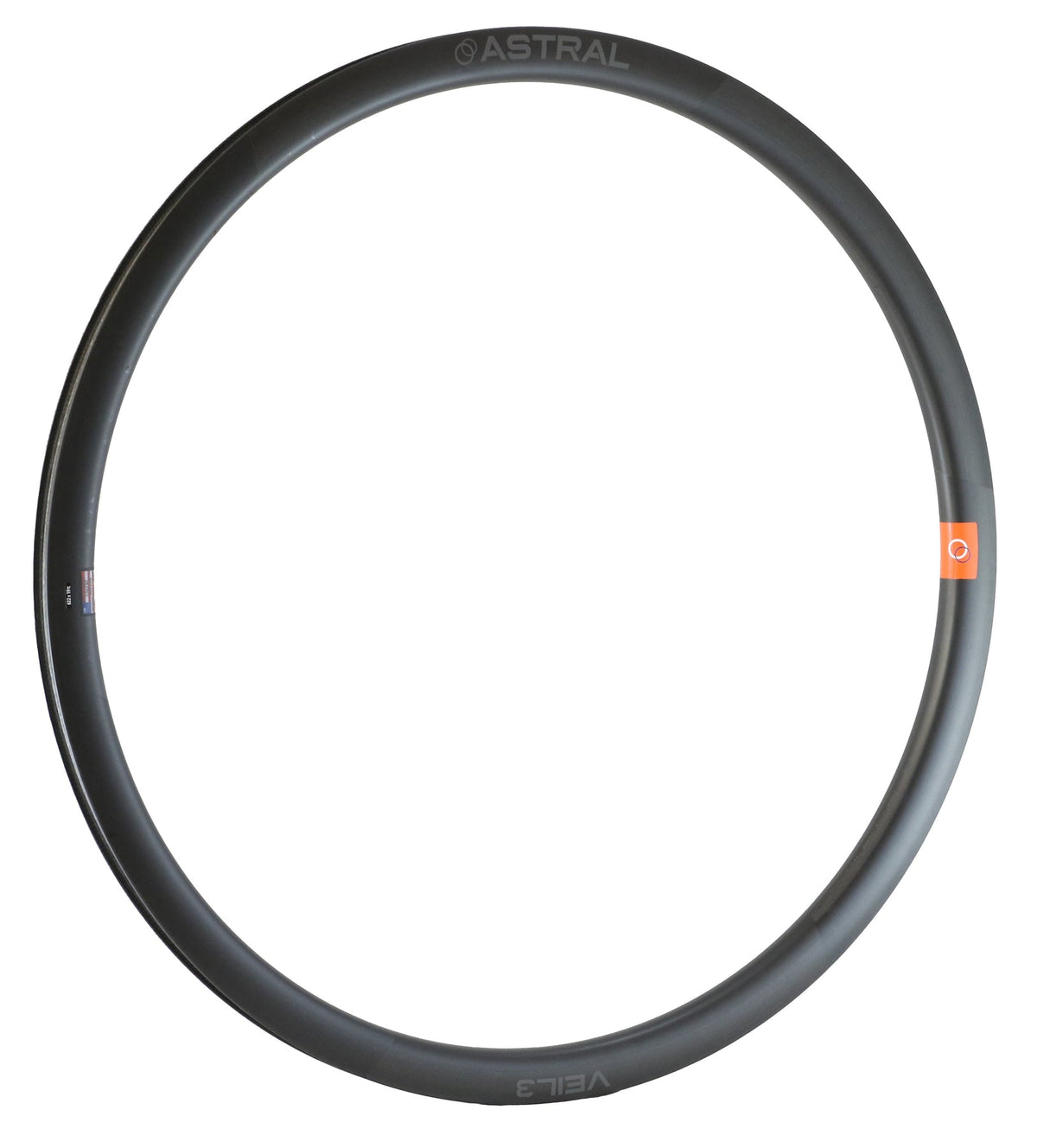

ASTRAL Veil 3 Rim



Size
Style



The Veil3 is a lightweight but durable carbon rim. The 32mm deep Delta Rim profile makes for snappy accelerations and easy climbing while also improving airflow and stability. This full-carbon tubeless, ready clincher has an internal rim width of 20mm, making it well-suited for a variety or tire-widths.

All Astral rims are Tubeless Easy for pain-free tire installation you can do at home.

Add a nipple kit for an easier build. Choose the Veil3 as a complete wheel build.

Custom builds available! Any hub, any spec, just contact us with your special project. We’ll make it happen. Services available to dealers.

*20 hole rim not available in disc brake

  • 700c Carbon Clincher
  • Weight: Rim brake - 410g
  • Weight: Disc brake - 400g
  • Depth: 32mm
  • Width: Int: 19mm / Ext: 27mm
  • External nipples
  • ERD: 576.5mm
  • Spoke Bed Diameter: 574mm
  • Max Tension: 130kgf
  • Hole count options: Disc brake: 24 or 28; Rim brake: 20, 24 or 28
  • Max tire pressure for tire widths: 25mm: 120psi, 32mm: 80psi
  • Hole count options: Disc brake: 24; Rim brake: 20 or 24
  • Max tire pressure for tire widths: 25mm: 120psi, 32mm: 80psi, 40mm: 60psi, 50mm: 45psi
  • AVT Works is our in house wheel building and service dept offering a full range of custom wheel builds and hub servicing.
  • Available with Chris King hubs in all 9 standard in stock colors plus any other hubs listed on our site including White Industries, Phil Wood, ONYX, Industry Nine and PAUL Components.
  • Available with rims from Astral, Velocity, Praxis, Knight Composites, BOYD, ENVE and more with Wheelsmith or SAPIM CX Ray spokes.
  • If you're looking for a hub / rim combination not listed here please contact us.
  • * Custom made products including AVT Works wheelsets can be returned post purchase subject to a 20% re-stocking fee. More info can be found in our returns policy.
