Our front Center Lock disc hubs are available in 24, 28, and 32 spoke hole configurations (other spoke hole count options are available upon request). We also offer our front Center Lock Disc hubs with 2 bearing options: Standard Phil spec bearings which have full contact seals and have a 100% fill with our Phil Waterproof grease. Carbonyte Phil spec bearings are our low drag bearing option which have partial contact seals and have a 30% fill with our full synthetic Phil Carbonyte grease.

SPECIFICATIONS
Hub shell material 6061 Aluminum
Axle material 6061 Aluminum
End cap material 6061 Aluminum
Front hub width 100 mm or 110mm
Axle diameter QR, 12mm, 15 mm
Disc mount pattern Center Lock
Bearing availability 6804 (Standard), 6804 (Carbonyte)
Front hub weight 247 grams
Rider and bike weight limit 280 lbs / 127 kgs
Materials  All of our manufactured items are machined out of US-produced materials.
HUB DIMENSIONS
Axle length 100 mm or 100mm
Left side flange diameter 66 mm
Right side flange diameter 66 mm
Left side flange to center 19 mm
Right side flange to center 34 mm






Our front Center Lock disc hubs are available in 24, 28, and 32 spoke hole configurations (other spoke hole count options are available upon request). We also offer our front Center Lock Disc hubs with 2 bearing options: Standard Phil spec bearings which have full contact seals and have a 100% fill with our Phil Waterproof grease. Carbonyte Phil spec bearings are our low drag bearing option which have partial contact seals and have a 30% fill with our full synthetic Phil Carbonyte grease.

SPECIFICATIONS
Hub shell material 6061 Aluminum
Axle material 6061 Aluminum
End cap material 6061 Aluminum
Front hub width 100 mm or 110mm
Axle diameter QR, 12mm, 15 mm
Disc mount pattern Center Lock
Bearing availability 6804 (Standard), 6804 (Carbonyte)
Front hub weight 247 grams
Rider and bike weight limit 280 lbs / 127 kgs
Materials  All of our manufactured items are machined out of US-produced materials.
HUB DIMENSIONS
Axle length 100 mm or 100mm
Left side flange diameter 66 mm
Right side flange diameter 66 mm
Left side flange to center 19 mm
Right side flange to center 34 mm

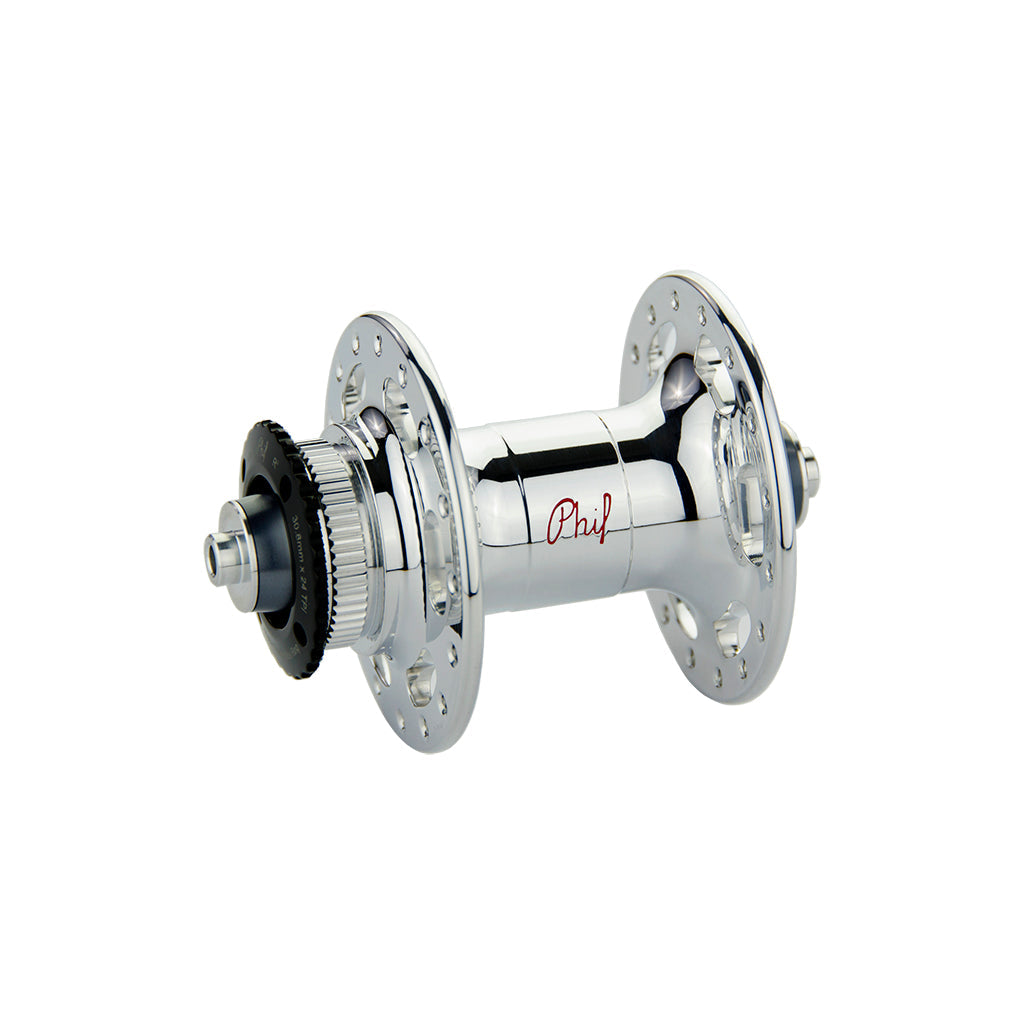

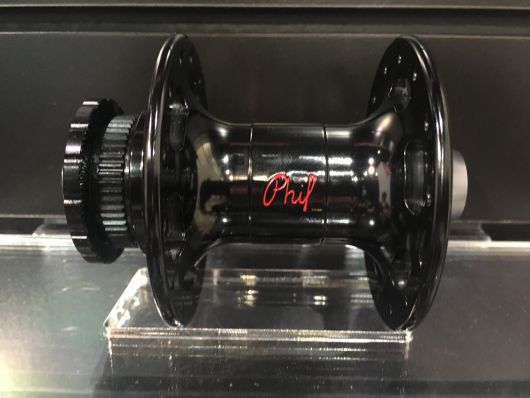

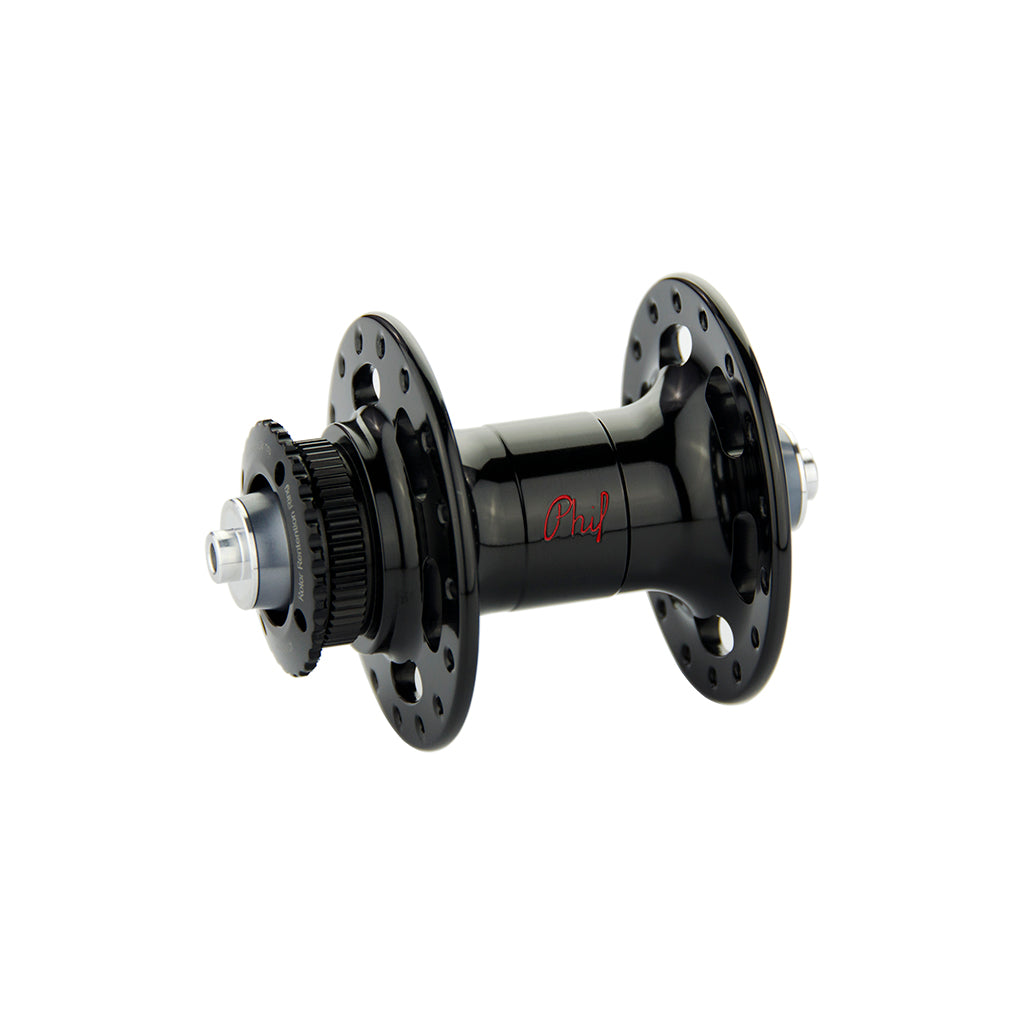

Phil Wood Centerlock Disk Hub - Front



Color
Silver
Black
Red
Blue
Green
Pink
Purple
Gun Metal Gray
Drilling
Bearing Type



Availability and stock levels vary by color & specification, please check each color below for stock information.

Many Phil Wood products are available for pre-order with lead times of 1-2 weeks.

Our front Center Lock disc hubs are available in 24, 28, and 32 spoke hole configurations (other spoke hole count options are available upon request). We also offer our front Center Lock Disc hubs with 2 bearing options: Standard Phil spec bearings which have full contact seals and have a 100% fill with our Phil Waterproof grease. Carbonyte Phil spec bearings are our low drag bearing option which have partial contact seals and have a 30% fill with our full synthetic Phil Carbonyte grease.

SPECIFICATIONS
Hub shell material 6061 Aluminum
Axle material 6061 Aluminum
End cap material 6061 Aluminum
Front hub width 100 mm or 110mm
Axle diameter QR, 12mm, 15 mm
Disc mount pattern Center Lock
Bearing availability 6804 (Standard), 6804 (Carbonyte)
Front hub weight 247 grams
Rider and bike weight limit 280 lbs / 127 kgs
Materials  All of our manufactured items are machined out of US-produced materials.
HUB DIMENSIONS
Axle length 100 mm or 100mm
Left side flange diameter 66 mm
Right side flange diameter 66 mm
Left side flange to center 19 mm
Right side flange to center 34 mm



  • Most Phil Wood products are now available for pre-order with a 1-2 week lead time.
  • Phil Wood hubs & headsets are available in a range of colors which may vary by product so please consult the specific product page for details on available options.
  • Other colors and product options are available depending on stock levels, so if you don't see the color or exact product you are looking for please contact us.
  • If you have any technical questions at all on Phil Wood products please contact us and we'll be pleased to help you out!
  • All Phil Wood products are responsibly manufactured in San Jose, California, USA.
  • All Phil Wood products carry a lifetime, limited warranty.
